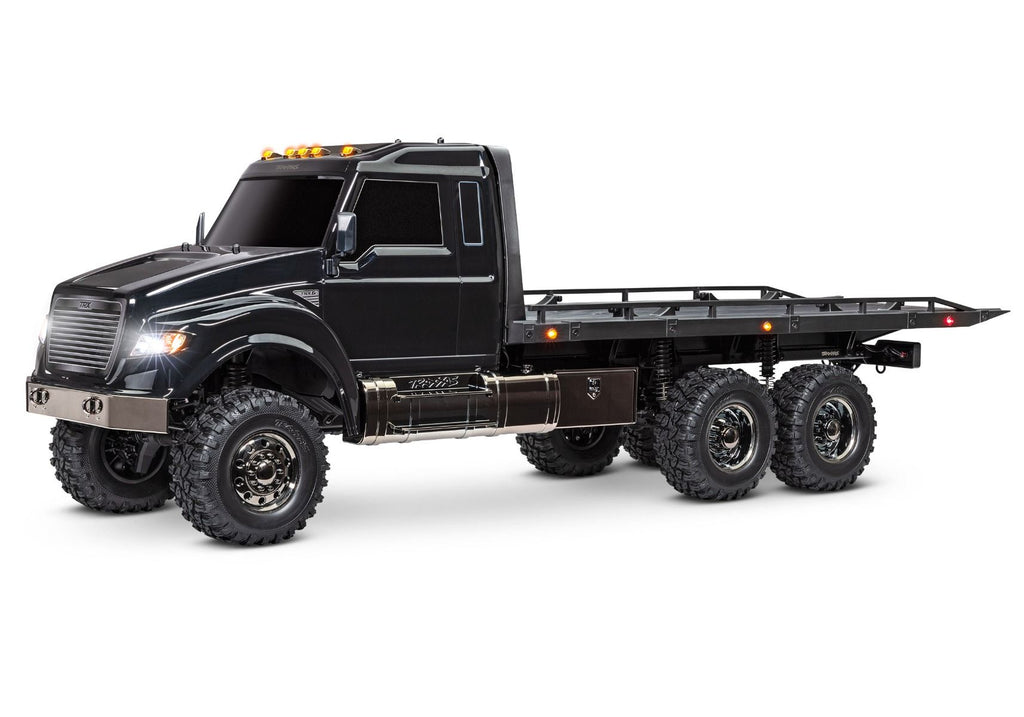

The Traxxas TRX-6 1/10 6x6 Ultimate RC Hauler Flatbed Tow Truck is a great way to add scale realism to your RC adventure. Based on the extremely capable Traxxas TRX-6 chassis, this RC hauler is the biggest and baddest truck in the TRX lineup. The rear bed features adjustable wheel chocks and tie-downs to haul and display your Traxxas 4-Tec models. The included LED lighting system adds to the black over black chrome detail giving the Hauler a menacing look. To add even more scale detail, this combo includes the Traxxas Pro-Scale Winch.
The Hauler features a long, 23.7" (603mm) wheelbase and full time six-wheel drive! Starting off with the motor, Traxxas equipped this big rig with the Titan 21T 550 brushed motor. This motor is paired to a High-Low Transmission giving plenty of torque for climbing grade, even when fully loaded. Portal axles give plenty of ground clearance when terrain gets rough and T-Lock locking differentials aid in keeping maximum traction. Six GTS aluminum shocks deliver smooth dampening performance and a smooth ride for your cargo. The shock bodies are threaded allowing you to easily adjust spring tension to compensate for loaded and unloaded configurations.
Features:
- Based on the extremely capable Traxxas TRX-6 chassis
- Large rear flat bed fits the Traxxas 4-Tec chassis perfectly
- Adjustable wheel chocks and tie-downs keep your cargo in place
- Pre-wired LED light system
- Detailed body and body accessories
- Powered by a Titan 21T 550 brushed motor and XL-5 HV ESC
- Extended 30"steel frame rails
- Portal axles for extended ground clearance
- Full-time shaft driven 6-wheel drive
- Aluminum GTS shocks come oil filled for out of the box performance
- Two speed high-low transmission
- Chassis Mount 2075X servo
- 2.2" Canyon RT All-Terrain Tires are mounted to 2.2" Big Rig Wheels
- Includes TQi 2.4GHz 4-channel transmitter
Specifications:
- Length:
- Overall: 37.5 inches (953 mm)
- Chassis: 34.0 inches (863 mm)
- Track Width:
- Front: 9.8 inches (245 mm)
- Rear: 9.8 inches (249 mm)
- Ground Clearance: 3.14 inches (80 mm)
- Weight: 10.7 pounds (4.83 kg)
- Overall Height: 11.9 inches (303 mm)
- Wheelbase:
- Front - Intermediate Axle: 18.6 inches (471 mm)
- Front - Rear Most Axle): 23.7 inches (603 mm)
- Approach Angle: 60°
- Departure Angle: 55°
- Breakover Angle: 57°
- Shock Length: 3.54 inches (90 mm)
- Battery Tray: 158.75x47x23/26mm (LxWxH)
- Hex Size: 12 mm
- Gear Pitch: 32P
- Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-Driven 6WD
Includes:
- (1) Traxxas TRX-6 1/10 6x6 Ultimate RC Hauler Flatbed Tow Truck
- (1) Pro-Scale Winch
- High quality maintenance tools
Required:
- (1) 6-7 Cell NiMH battery or (1) 2-3S LiPo battery with Traxxas ID connector
- (1) Compatible Traxxas Charger
- (4) AA Batteries for Transmitter
