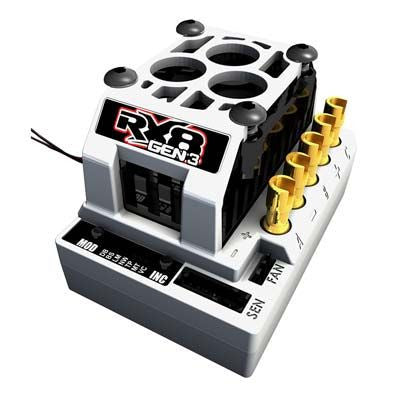

TEKIN TT2302 Rx8gen3 BL Sensored/Sensorless Dual Mode ESC

TEKIN TT2302 Rx8gen3 BL Sensored/Sensorless Dual Mode ESC

$ 219.99 $ 340.00

Rx8gen3 BL Sensored/Sensorless Dual Mode ESC

Features:

  • Updated HD Gold-plated Solder Posts for Easy Soldering
  • Updated Adjustable Torque Control
  • Updated Adjustable Throttle and Brake Frequencies
  • Updated HD High Voltage Programmable BEC
  • Ultra-smooth and Precise Throttle and Braking Control
  • Compatible with Brushless and Brushed Motors
  • ​Easily Access Programming, Anywhere, Anytime
  • ​Datalogging Capability
  • ​EZ Access HotWire Programming Port
  • ​HotWire Interface for Advanced Programming and Updating
  • ​D2: Dual Drive Mode Technology
  • ​On-Board Temperature Indicator
  • ​HDAC: High Density Copper PCB's
  • ​Sensor Plug for Precise Commutation with all Motors
  • ​Self Test Diagnostics and Factory Reset
  • ​Pit Tune Mode
  • ​DGF2: Digital Glitch Filtering V2
  • ​QuickTune Programming
  • ​One-Touch Radio Calibration

    Specifications:
    Controls:
    Forward/Brake/Reverse
    Input Voltage:
    2S-6S LiPo / 4-16S NiMH-NiCD
    BEC:
    6.0v / 7.4v @ 8amps
    Motor Limit Brushless Mode:
    2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2200kV; 6S - 2200kV
    Motor Limit Brushed Mode:
    No Limit
    Max Current:
    300amps per phase*
    Burst Current:
    1000amps per phase*
    Timing Profiles:
    7 choices (on board)
    Brushed Modes:
    FWD Only / FWD-REV / FWD-REV Delay
    Brushless Modes:
    FWD Only / FWD-REV / FWD-REV Delay
    Dimensions:
    1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
    Weight:
    2.7oz / 76.5g
    Recommended Applications:
    1/10 4WD SCT, 1/8 4WD Buggy, 1/8 4WD Truggy, 1/8 4WD Monster Truck, 1/8 4WD Touring Car, 1/8 4WD GT, 1/8 Dirt Oval, 1/10 (and larger) Rock Crawler
