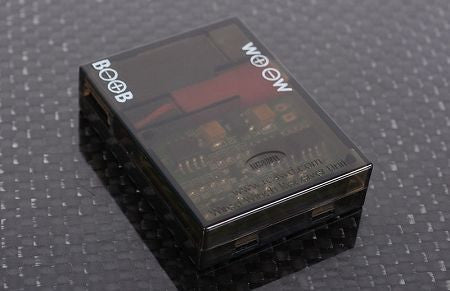

RC4WD Z-S1089 Wired Winch Control Unit

Wired Winch Control Unit

Specifications:

Receiver

• Small Compact Size
• Operating Voltage 6V to 11.1V
• Requires 3 position Third Channel

• Easy Plug and Play
• Instruction Included
• Length: 1.6in / 41mm
• Width: 1.2in / 31mm
• Height: 0.39in / 10mm
• Weight: 0.35oz / 10g


Wire

• Length: 6in / 150mm
• Wires Weight: 0.14oz / 4g

• 1x Wired Control Unit

• 1x 6" Receiver/Receiver Power Wire
• 1x 6" Receiver/Winch Control Wire

• You will need a radio with a third channel to operate this controller.

• Your third channel needs to be a three position switch (on/off/on).
• If your radio does not have a three position switch, you can purchase a wireless controller unit. (Z-S1092)

• This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
• If for any reason you cut the wires on the control box, this will void the warranty.
• Some Lipo battery voltage can be higher than 11.1 volts. Please be careful and check voltage before using your battery.
