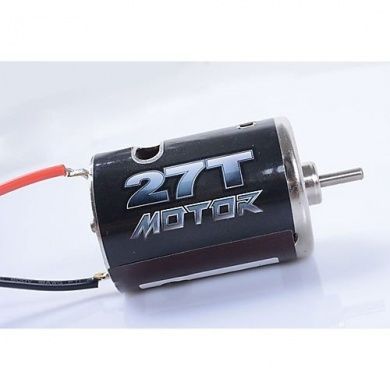

RC4WD Z-E0067 540 Crawler Brushed Motor 27T

RC4WD Z-E0067 540 Crawler Brushed Motor 27T

$ 12.99

540 Crawler Brushed Motor 27T

Specifications:

  • Custom Made 540 Steel Case
  • Chrome Plated Case
  • Build in Capacitor for Minimizing Glitch
  • High Torque Magnet and Rotor
  • Small Footprint (50mm long)
  • Tuned for Rock Climbing and Scale Driving
  • Polished Bushings
  • Body OD: 1.39in / 35.5mm
  • Length: 1.96in / 50mm
  • Output Shaft Length: 0.43in / 11mm
  • Output Shaft OD: 0.12in / 3.1mm
  • Min and Max Voltage Range: 2.4V-30V
  • Weight: 5.57oz / 158g


Performance Specs:

  • (At No Load) RPM @ 7.2V : 15000 +10% , 1.2Amp Current
  • (Rated load) RPM @ 7.2V : 13600 +10%, 5.02Amp Current
  • Designed Operating Temperature Range: -10_C to +60_C
  • Shaft end play: 0.1mm to 0.5mm
  • Noise Level: < 78DB
