RC4WD Z-E0055  1/10 High Performance LED Light Bar

RC4WD Z-E0055 1/10 High Performance LED Light Bar

$ 45.49

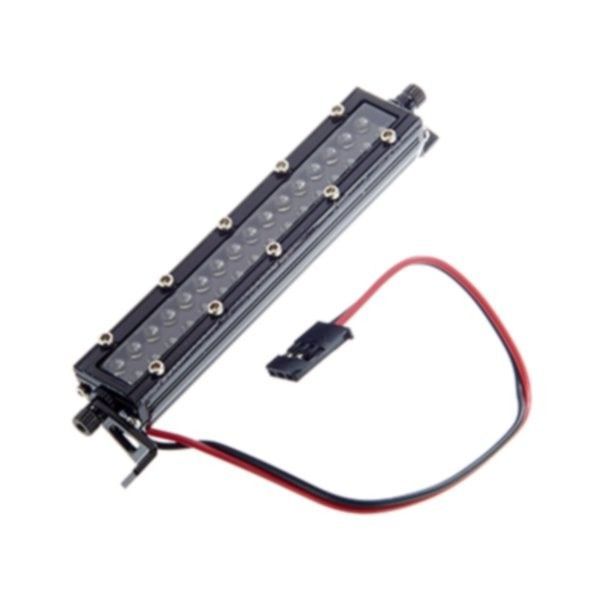

RC4WD 1/10 High Performance LED Light Bar

Specifications:
  • Cast Molded Housing
  • Reversible "L" Brackets to fit many Applications
  • Adjustable "L" Brackets for Rotating Light
  • 32 Individual LED Bulbs
  • Super Bright Lighting
  • Vented on side to Dissipate Heat
  • Works with up to 11.1v Lipo with use of a BEC to Regulate Voltage below 7.4 Volts
  • Standard Receiver Plug
  • Connects to Extra Channel on Receiver
  • 2mm Mounting Holes
  • Rated Output 32 Lumens
  • Overall Length: 3.76in / 95.5mm
  • Light Bar Width: 2.95in / 75mm
  • Overall Height: 0.82in / 21mm
  • Light Bar Height: 0.63in / 16.2mm
  • Weight: 1.2oz / 34g
What's Included:
  • 1x RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3")
  • 1x KC HiLiTES Decal Sheet


Replacement Hardware:

  • M1.5 X 5mm SHCS (Silver)
  • M1.6 X 6mm Phillips Head Machine Screws (Silver) Z-S1387
  • RC4WD Light Bar Knurled Nuts Z-S1484

Optional Parts:

  • Y harness with Tamiya Connectors for Lightbars Z-S1601
  • RC4WD Mini ON/OFF Switch For Lighting Unit Z-E0081
  • RC4WD Strobe Lighting Unit Z-S1573

Notes:

  • Use medium grade threadlock on "L" Bracket Nut to prevent loss and to keep the light in position.
  • Mounting Hardware can be found here. M2 SHCS/ M2 BHSC
  • While the lightbar comes with a standard receiver plug, this is only for ease of use. The receiver will not allow enough power for the lightbar and it will be dim. If you want the light to be bright, you will need to power it directly from your battery, or use a BEC to get more power to your receiver.
