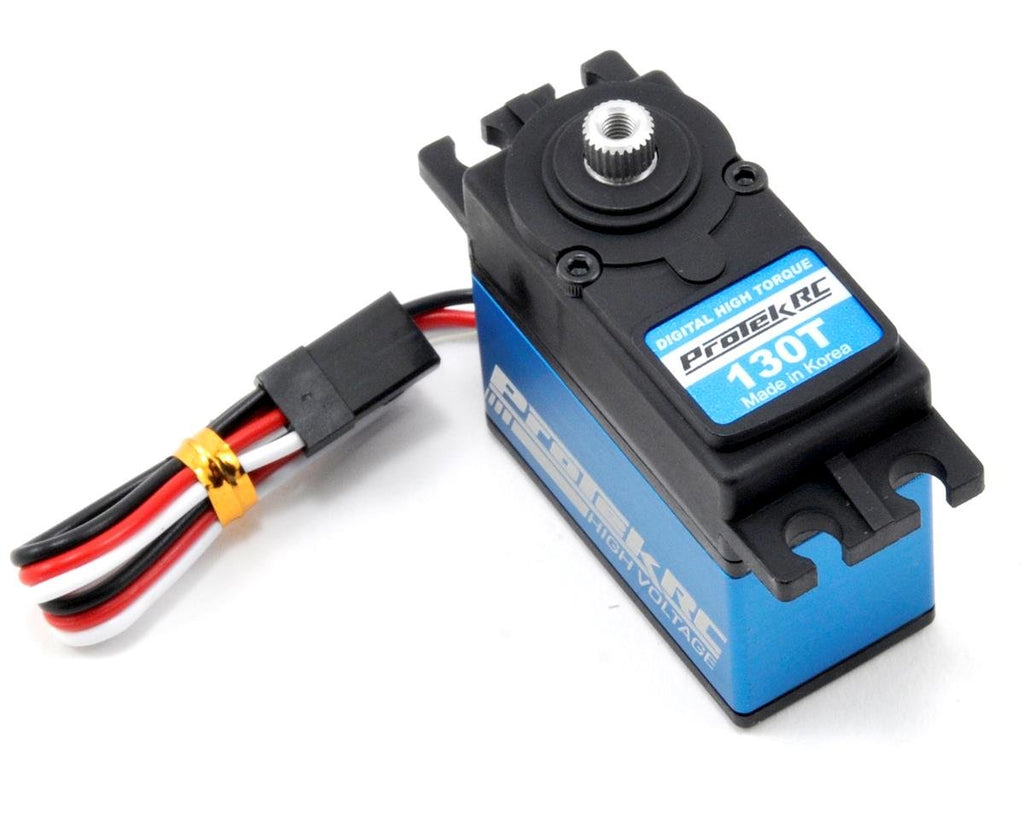

PROTEK PTK-130T Standard Digital "High Torque" Metal Gear Servo High Voltage
Roll over image to zoom in Click on image to zoom
PROTEK PTK-130T Standard Digital "High Torque" Metal Gear Servo High Voltage

PROTEK PTK-130T Standard Digital "High Torque" Metal Gear Servo High Voltage

PROTEKSKU: PTK130T
Price:
$ 89.99
Stock:
Sold out

Description

Features:

  • Ideal for any 1/10 to 1/8 scale vehicle application
  • Aluminum middle case
  • High voltage circuitry
  • 0.10 transit speed, and 288 oz-in of torque @ 6.0V
  • 0.08 transit speed, and 355 oz-in of torque @ 7.4V
  • Aluminum single arm servo horn
  • Full metal gears and dual ball bearings
  • 200mm long 22awg connector wire w/gold plated connectors
  • Coreless motor



Servo Model
 130T
Recommended Application 1/10 to 1/8 scale surface
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.10/60° sec
Operating Speed @ 7.4V
 		0.08/60° sec
Dynamic Torque @ 6.0V
 288 oz-in (20.7 kg-cm)
Dynamic Torque @ 7.4V
 		355 oz-in (25.6 kg-cm)
Motor Type
 High Efficiency Coreless Motor
Output Shaft 25 Tooth
Gears Metal
Weight 61g
Pulse/Frequency
 1520μs / 333hz
