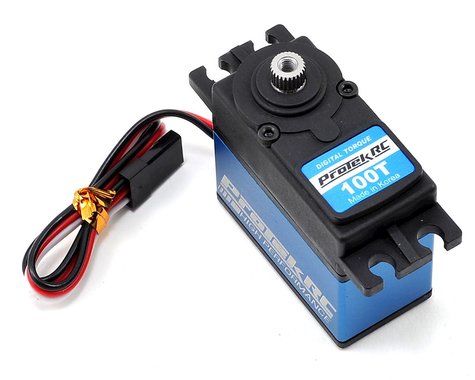

PROTEK PTK-100T 100T Standard Digital "High Torque" Metal Gear Servo
100T Standard Digital High Torque Metal Gear Servo
Features:
- Ideal for any 1/10 scale vehicle application
- Aluminum middle case
- 0.14 transit speed, and 216 oz-in of torque @ 6.0V
- Full metal gears and dual ball bearings
- 200mm long 22awg connector wire w/gold plated connectors
- Cored Motor
| Servo Model |
100T |
| Recommended Application | 1/10 Surface |
| Operating Voltage | 4.8V - 6.0V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 4.8V | 0.17/60° sec |
| Operating Speed @ 6.0V |
0.14/60° sec |
| Dynamic Torque @ 4.8V |
173 oz-in (12.5 kg-cm) |
| Dynamic Torque @ 6.0V |
216 oz-in (15.6 kg-cm) |
| Motor Type |
Cored DC Motor |
| Output Shaft | 25 Tooth |
| Gears | Metal |
| Weight | 54.9g |
| Pulse/Frequency |
1520μs / 333hz |
