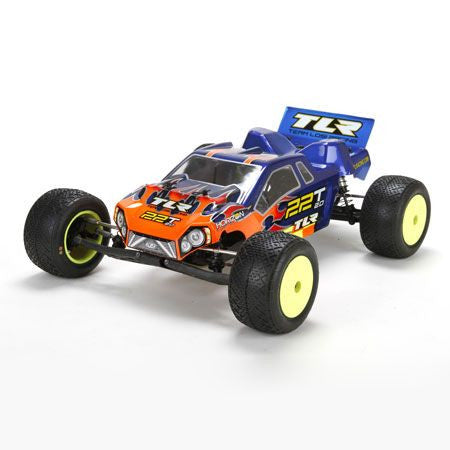

22T 2.0 Race Kit: 1/10 2WD Stadium Truck
Needed to Complete:
- 2 Channel Surface Radio System (Minimum)
- 1/10 ESC, Motor & Pinion Gear
- High Speed Servo
- 2S LiPo Battery & Compatible Charger
- Polycarbonate Paint for Bodies
- 2.2 1/10 Truck Tires & CA Glue
- Assembly
This is the TLR 22T 2.0 1/10 Scale 2WD Electric Racing Truck Kit. The 22T 2.0 Race Kit continues to build on the championship-winning TLR 22 platform with features that make it easy to drive fast and have fun. Updates include advanced suspension geometry adapted from the 22 2.0 buggy, a bell-crank steering system, Gen II shocks with X-ring seals and a thoroughly refined ball differential with tungsten carbide diff balls. You also get popular option parts as well as hardware for both mid- and rear-motor configurations.
Designed for Durability
A main focus of the 22T 2.0 platform design is durability. Composite components are 15% beefier than most off-road race kits and aluminum parts are used in all the critical areas to reduce wear and the likelihood of costly repairs.
Gen II 12mm Big Bore Shocks
The Gen II shocks keep operating friction to a minimum without leaking or weeping oil. This keeps suspension response consistent and significantly reduces maintenance. They deliver a plush ride near the top of their travel but still provide plenty of bottoming resistance when landing big jumps. Updated parts include:
- Longer shock bodies and shafts for increased suspension travel
- CNC machined 2-hole 1.5mm and 1.6mm pistons
- CNC machined O-ring and guide bushings
- Updated silicone X-ring seals
- Ti-Carbo-nitride coated shock shafts
- Aluminum bleeder screw shock caps
Features:
- Updated suspension geometry
- 22™ 2.0 caster blocks with 22T™ 2.0-specific spindles
- Wider rear arms for easier direction changes
- Gen II shocks with machined piston and x-ring seals
- Bell crank steering system for smoother response at every speed
- Hard-anodized 7075-T6 aluminum chassis
- Updated ball differential with tungsten carbide balls and larger diff rings
- TiCN shock shaft, inner hinge pins, and outer threaded hinge pins
- Adjustable, hard-mount battery holder
- Aluminum rear camber block
- Narrower rear hex with less wheel off-set
- Aluminum ball stud washers throughout
- Mid- and rear-motor mount parts included
- Metric hardware
- 22T 2.0 body
Specifications:
Type: Stadium Truck
Scale: 1/10
Length: 15.75 in (400mm)
Width: 12.72 in (323.2mm)
Height: 5.63 in (143mm)
Wheelbase: 11.3–11.41 in (286–290mm)
Chassis: 2.5mm 7075-T6 Aluminum
Suspension: Lower A-Arm, Upper Adjustable Link
Drivetrain: 2WD
Motor or Engine: 540 size
Speed Control: Not included
Servos: Not included
Gear Pitch: 48-pitch
Wheel Size: 2.2×1.89 in (56×48mm)
Kit/RTR: Kit
Shock Type: 12mm Big Bore, Oil Filled
Body: 22T Body, unpainted poly carbonate
Ball Bearings: Full Rubber Sealed Ball Bearings
Experience Level: Advanced
Recommended Environment: Outdoor
Assembly Time: 3-5 Hours
Is Assembly Required: Yes
