Star Drive Steel Universal Joint, Slash 4x4 Front
Optional upgrade heavy duty splined star drive axle kit for the front of the 1/10th scale Traxxas Slash 4X4, Rally VXL, and Stampede 4X4
FEATURES:
- Heavy duty CNC machined #45 hardened carbon steel construction
- Replaces factory plastic drive axles
- Red anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Hardened steel keyed wheel shaft and wheel hub hex (pin NOT included)
- Steel is black finished

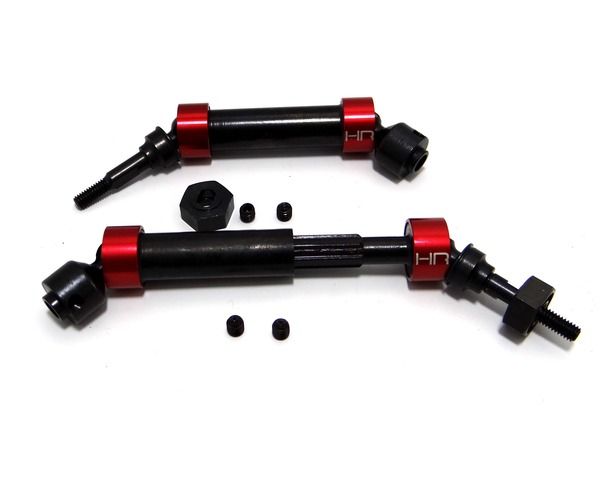

YOU WILL RECEIVE:
- Two (2) front splined CVD shaft assemblies
- Two (2) wheel hub hexes
- Two (2) setscrews (an extra may be included)
REQUIREMENTS:
- Installation
- Removable thread lock (e. g. blue Loctite) on screws threading into metal
- Light grease for CV joints and shaft slider splines helps maintain their longevity
SPECIFICATIONS:
- Approximate overall collapsed length: 99mm (3.9 inch)
COMMENTS:
- Replaces factory plastic Traxxas TRA6851X driveshaft assembly
- Replacement parts include: RECT288 (12mm hexes), RCV14DH (outdrive drive hubs), RCV14MF50 (slider shafts), RCV14AA (outer stub axle), RCV14P (CV rebuild), RCV14R (o-rings)
