Smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature
Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 59F
Dual brake mode
Advanced Turbo and Boost timing technology
Built-in reverse polarity protection circuit
Real-time data recording function, easy to obtain power running status
Capacitor thermal protection is designed and implemented into the ESC and will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload
Superior dustproof protection
Custom ultra-soft 11AWG silicone wire
Frameless fan blade is designed with specially formulated material to reduce the defective rate of the fan caused by impact from small stones, sand and other foreign objects
Intelligent fan with noise reduction and power saving functions
Specifications:
ESC:
Scale:1/8
Type:Brushless Sensored
Input Voltage:2-4S LiPo
BEC Output:6V/7.4V Adjustable
Continuous: 200A
Peak: 1080A
Motor Limit:3S LiPo: KV= 4000 3660 Size motor / 4S LiPo: KV= 3000 4268 Size motor
Braking mode:FOC/BLDC
Programmable:Yes, Via OTA Programmer or LCD G2 Program Box
Suitable applications:1/8 Off-road, On-road Racing & 1/10th Short course & Monster truck
Size(LxWxH):54.8x38.8x36.8mm
Weight:102.8g
Includes:

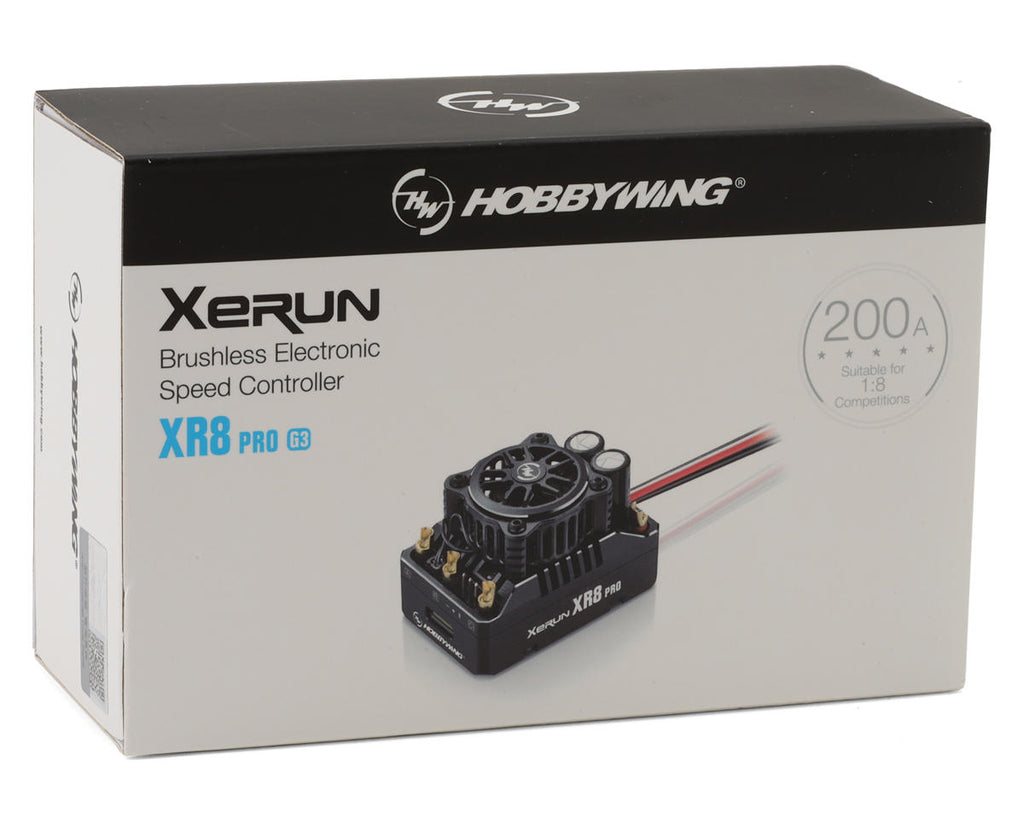

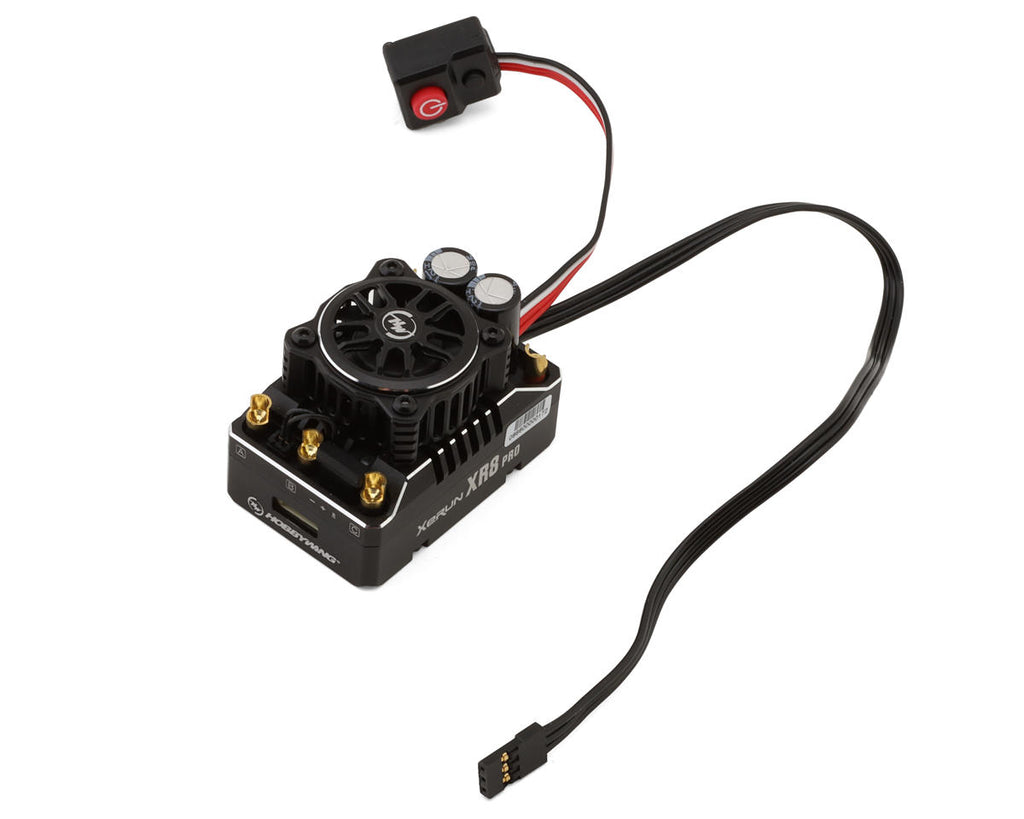

(1) Xerun XR8 Pro G3 1/8 Competition Sensored Brushless ESC
