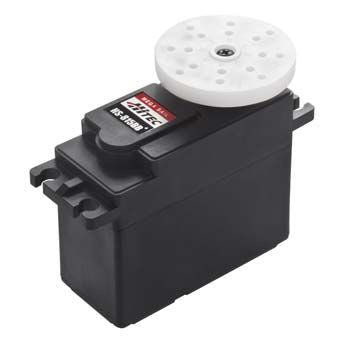

HITEC 31815S HS-815BB Mega Sail Arm Servo U

HITEC 31815S HS-815BB Mega Sail Arm Servo U

$ 44.99

HS-815BB Mega Sail Arm Servo U

HS-815BB Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.19 ~ 0.14
Maximum Torque Range oz. / in. 275 ~ 343
Maximum Torque Range kg. / cm. 19.8 ~ 24.7
Current Draw at Idle 8 mA
No Load Operating Current Draw 520 mA
Stall Current Draw 6,000 mA
Dead Band Width 8 µs
Physical Specifications
Dimensions (Inches) 2.59 x 1.18 x 2.26
Dimensions (Metric) 66.0 x 30.0 x 57.6
Weight (Ounces) 5.36
Weight (Gram) 152.0
Circuit Type HT7003 Analog MosFet
Motor Type 3 Pole Carbon Brush Ferrite
Gear Material Nylon
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Mega 15
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
