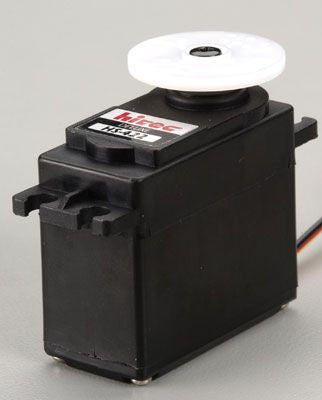

HS-422 Servo Deluxe Universal
HS-422 Servo Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.21 ~ 0.16 |
| Maximum Torque Range oz. / in. |
46 ~ 57 |
| Maximum Torque Range kg. / cm. |
3.3 ~ 4.1 |
| Current Draw at Idle |
8 mA |
| No Load Operating Current Draw |
150 mA |
| Stall Current Draw |
800 mA |
| Dead Band Width |
8 µs |
| Physical Specifications |
| Dimensions (Inches) |
1.59 x 0.77 x 1.44 |
| Dimensions (Metric) |
40.6 x 19.8 x 36.6 |
| Weight (Ounces) |
1.60 |
| Weight (Gram) |
45.5 |
| Circuit Type |
HT7003 Analog SMT |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Nylon |
| Bearing Type |
Dual Oilite |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
25 / 40 |
