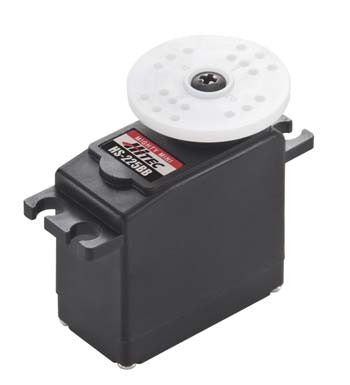

HS-225 Servo Mighty Mini BB Univ HS225
HS-225MG Servo Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.14 ~ 0.11 |
| Maximum Torque Range oz. / in. |
54 ~ 67 |
| Maximum Torque Range kg. / cm. |
3.9 ~ 4.8 |
| Current Draw at Idle |
8 mA |
| No Load Operating Current Draw |
300 mA |
| Stall Current Draw |
1,200 mA |
| Dead Band Width |
8 µs |
| Physical Specifications |
| Dimensions (Inches) |
1.27 x 0.66 x 1.22 |
| Dimensions (Metric) |
32.4 x 16.8 x 31.0 |
| Weight (Ounces) |
1.09 |
| Weight (Gram) |
31.0 |
| Circuit Type |
HT7003 Analog SMT |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Metal |
| Bearing Type |
Top Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
25 / 40 |
