Description
Features:
- Includes one aluminum clamping servo horn
- Affordable option for 1/10 monster truck, 1/10 2WD and 4WD buggies, trucks, boats and more!
- Waterproof up to 1 meter
- 337 oz-in of torque and .11 transit speed @ 6.0V
- 400 oz-in of torque and .09 transit speed @ 7.4V
- Digital circuitry
- Coreless motor
- Metal gears
- Lightweight plastic upper and lower case w/black anodized aluminum center case
- Dual ball bearings
- 220mm servo lead
- Includes plastic star, 4 way, dual, single and round type servo horns and mounting hardware
- 1 Year warranty against manufacturer defects*

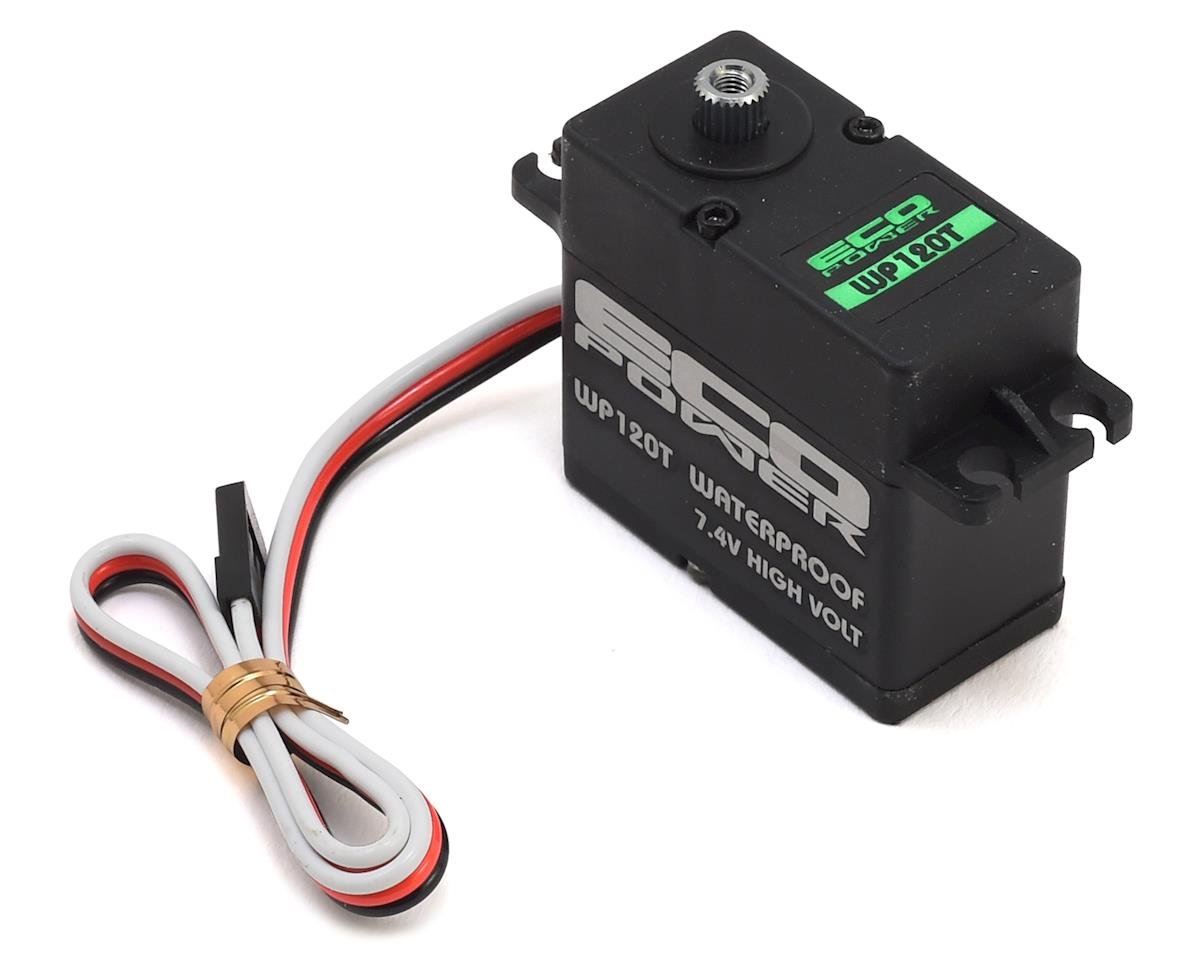

| Servo Model |
WP120T |
| Recommended Application | 1/10 Scale Surface |
|
Waterproof |
Yes |
| Operating Voltage | 4.8 - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.11/60° sec |
| Operating Speed @ 7.4V | 0.09/60° sec |
| Dynamic Torque @ 6.0V | 337 oz-in (24.4 kg-cm) |
| Dynamic Torque @ 7.4V | 400 oz-in (28.8 kg-cm) |
| Motor Type | Coreless |
| Output Shaft | 25 Tooth |
| Gears | Full Metal |
| Weight | 53g |
| Pulse/Frequency | 1520?s / 333hz |
